What Are White Zirconia Crowns? Benefits, Uses, and Applications

in Blogs

White zirconia crowns have become the dominant restoration material in modern dentistry in both clinical practice and the dental laboratories that produce them. The shift away from porcelain-fused-to-metal (PFM) restorations and toward all-ceramic dental zirconia solutions has been one of the most significant material transitions in dentistry over the past two decades. Understanding what white zirconia crowns are, how they’re made, and why both dentists and dental labs prefer them requires looking at the material from both the patient-facing and lab-production perspectives.

For dental laboratories, white zirconia crowns represent a specific product category within the broader dental zirconia discs range: unshaded, single-color zirconia blanks that are milled to full-contour crowns and then stained and glazed to match the patient’s natural dentition. For patients and referring dentists, white zirconia crowns represent the intersection of maximum strength and natural appearance a combination that previous materials could not reliably deliver together. This guide covers both dimensions.

What Is White Zirconia? Material Composition and Properties

White zirconia is yttria-stabilized zirconium dioxide (ZrO₂) in its unshaded, pre-sintered form. The “white” designation refers specifically to the disc or block color before staining and glazing — not the final restoration color. In its pre-sintered state, zirconia is a chalky white that mills easily. After sintering at temperatures between 1480–1550°C, it densifies into a hard, smooth ceramic with the optical and mechanical properties that make it clinically valuable.

The material is fundamentally different from the acrylic, composite, and glass-ceramic alternatives it has displaced. Zirconium dental ceramic is not a glass it is a polycrystalline ceramic with a tightly controlled microstructure. This distinction is what gives it both its exceptional fracture resistance and its opacity characteristics that differ from glass-ceramic materials like lithium disilicate. White zirconia in its standard (3Y-TZP) grade has a predominantly tetragonal crystal microstructure, which is responsible for the transformation toughening mechanism that gives it strength values of 900–1200+ MPa far exceeding any other crown material in common clinical use.

Key physical properties of white zirconia:

Flexural strength: 900–1200+ MPa (3Y grade) significantly higher than e.max (~400 MPa) or PFM ceramic (~100–150 MPa veneer porcelain)
Hardness: ~1200 HV (Vickers) harder than enamel, resistant to wear and abrasion
Biocompatibility: ISO 10993 and ISO 6872 compliant no metal ions, no allergenic potential, safe for tissue contact
Thermal conductivity: Low insulates against temperature sensitivity post-restoration
Dimensional stability: Predictable sintering shrinkage (~20–25%) controlled by CAD/CAM design software compensation

Benefits of White Zirconia Crowns: What Makes Them the Clinical Standard?

1. Exceptional Strength and Fracture Resistance

The most clinically significant benefit of white zirconia crowns is structural performance. At 900–1200+ MPa flexural strength for standard 3Y-TZP grades, zirconia is the strongest single-material crown option in clinical dentistry. This strength translates directly into clinical longevity — published clinical studies report zirconia crown survival rates of 95–98% at 5 years and 90–95% at 10 years, outperforming PFM restorations where veneer chipping remains a persistent failure mode.

For posterior cases where occlusal forces can exceed 500–1000 N in bruxism patients, and for bridge cases where connector strength is structurally critical, zirconia’s flexural strength reserve provides a margin of safety that no alternative crown material can match.

2. Metal-Free Biocompatibility

White zirconia crowns contain no metal. This eliminates the full range of biocompatibility concerns associated with PFM and metal-based restorations: metal ion release, galvanic sensitivity, the dark gingival margin that develops as metal crowns age, and the potential for allergic or sensitivity reactions in patients with documented metal sensitivity. For the significant minority of patients who report nickel, cobalt, or chromium sensitivity, dental zirconia is the only full-strength crown option that can be prescribed without biocompatibility qualification.

3. Natural Appearance with Shade Flexibility

White zirconia’s natural ceramic appearance, combined with external staining capability, gives dental laboratories complete shade control. The dental lab materials workflow for white zirconia involves milling the full-contour crown from an unshaded white disc, then applying compatible ceramic stains and glazes to match the specific shade, characterization, and optical effects required for each case. This approach is not limited to the shade range of a pre-shaded disc — any VITA Classic or 3D-Master shade, any level of characterization, and any custom optical effect is achievable.

4. No Metal Substructure Required

Unlike PFM restorations which require a cast metal coping as structural support for the overlying porcelain zirconia crowns are full-contour single-material restorations. There is no substructure to fabricate, no layering protocol to master, and no risk of porcelain chipping from the metal interface. This simplification of the production process is one of the primary reasons CAD/CAM zirconia has displaced PFM as the default crown material in most high-volume dental laboratories.

5. Proven Clinical Longevity

Zirconia crowns have now been in widespread clinical use for over 15 years, with a substantial evidence base supporting their long-term performance. Systematic reviews consistently report higher survival rates for monolithic zirconia crowns compared to PFM alternatives, with fracture of the restoration itself being a rare failure mode. The predominant failure mode in zirconia crowns is cement failure or secondary caries not material fracture which reflects the material’s structural reliability in clinical conditions.

Clinical Uses and Applications of White Zirconia Crowns

White zirconia crowns are indicated across a broad range of clinical applications. As a dental lab material supplier, we supply white zirconia discs to labs producing restorations for all of the following indications — and the specific disc grade and format selected should be matched to the clinical indication.

For labs producing high-volume standard crowns and bridges, st white zirconia for dental restorations by Upcera is one of the most widely specified white disc formats in US dental labs — offering consistent milling behavior, reliable shade response to standard ceramic stains, and the structural performance needed for both single crowns and multi-unit bridge cases.

Clinical Indication	White Zirconia Appropriate?	Key Considerations
Posterior single crowns	✅ Ideal	3Y grade preferred for maximum strength under occlusal load
Anterior single crowns	✅ With staining	Requires careful shade matching; consider 4Y/5Y for high translucency cases
Posterior bridges (3–4 unit)	✅ Ideal	3Y white required — connector strength demands full tetragonal phase
Anterior bridges (3 unit)	✅ Good	3Y or 4Y white depending on esthetic priority vs. strength requirement
Implant-supported crowns	✅ Excellent	Excellent biocompatibility for tissue contact; verify screw-retained vs. cemented
Implant-supported bridges	✅ With design check	Connector cross-section must be verified against disc flexural strength spec
Full-mouth rehabilitation	✅ Standard choice	Mix of white and pre-shaded formats per quadrant and esthetic zone
Paediatric crowns (primary teeth)	✅ Excellent	Biocompatibility and metal-free properties ideal for paediatric use
Bruxism/parafunction patients	✅ Preferred	Flexural strength of 3Y provides highest resistance to fracture under heavy load

White Zirconia vs. Other Crown Materials: A Complete Comparison

Dental labs and referring dentists evaluate crown materials on the same core properties: strength, esthetics, biocompatibility, machinability, and total case cost. Here is how white zirconia performs against the main alternatives.

Property	White Zirconia (3Y)	Lithium Disilicate (e.max)	PFM	Full Metal
Flexural strength	900–1200+ MPa	~400 MPa	~100 MPa (veneer)	~1400 MPa (alloy)
Translucency	Moderate (stainable)	High (natural)	Low–moderate	Opaque
Metal-free	✅ Yes	✅ Yes	❌ No	❌ No
Biocompatibility	Excellent	Excellent	Variable (alloy-dependent)	Variable
Lab workflow	CAD/CAM mill + stain	CAD/CAM mill or press	Cast + layer	Cast
Posterior bridges	✅ Ideal	⚠ Short spans only	✅ Traditional standard	✅ Full range
Anterior esthetics	⚠ Good with stain	✅ Excellent	⚠ Dark margin risk	❌ Poor
Gingival margin appearance	Clean ceramic	Clean ceramic	Metal line visible	Metal visible
10-year survival rate	90–95%+	~90%	~85–90%	~95%
Typical zirconia blocks price	Mid-range	Higher per unit	Higher (labor-intensive)	Lower material cost

White Zirconia Disc Formats: ST White vs. HT White Which to Use?

Not all white zirconia discs perform the same way in lab production. The two primary white disc formats available to US dental labs differ in their translucency grade, which directly affects their clinical indication range, staining behavior, and final esthetic outcome.

st white zirconia Standard Translucency (ST) white zirconia is the 3Y-TZP formulation with the highest flexural strength and moderate translucency. This is the correct format for posterior bridges, posterior high-load single crowns, implant-supported bridges, and any case where structural integrity is the primary material requirement. The moderate translucency of ST white responds well to standard ceramic staining for posterior esthetic cases but does not achieve the translucency levels required for demanding anterior esthetic applications.

ht white zirconia High Translucency (HT) white zirconia increases the yttria content toward the 4Y range, producing higher light transmission while retaining adequate strength for single crown and short-span bridge applications. HT white is the preferred format for anterior single crowns where shade matching to adjacent translucent natural dentition is a priority, and for cases where the referring dentist specifies a more natural optical appearance. HT white requires the same staining workflow as ST white but responds with a more translucent, optically natural final result.

Property	ST White Zirconia	HT White Zirconia
Zirconia grade	3Y-TZP	4Y (or high-end 3Y)
Flexural strength	900–1200+ MPa	700–900 MPa
Translucency	Moderate	High
Best for	Posterior bridges, high-load crowns	Anterior crowns, moderate-load cases
Posterior bridges (3+ unit)	✅ Ideal	⚠ Short spans only — verify connector
Anterior single crowns	⚠ Acceptable with staining	✅ Preferred format
Staining behavior	Takes stain well, deep chroma possible	Lighter stain response, more natural
Post-sinter polishability	Excellent	Excellent

How Dental Labs Source and Mill White Zirconia Crowns?

For dental labs evaluating white dental zirconia discs, the supplier and product choice determines batch consistency, milling behavior, and shade response across production runs, upcera dental zirconia products are among the most widely used white zirconia disc formats in US dental labs, with a reputation for tight batch-to-batch consistency and full open-system CAD/CAM compatibility.

As a dedicated dental lab material supplier, ZirconiaGuys stocks the complete Upcera white zirconia range including ST white, HT white, and multilayer white formats from US inventory. All products ship same or next day with no international lead times and full batch documentation.

The standard lab workflow for white zirconia crowns:

Digital design: The crown is designed in CAD software (exocad, 3Shape, or equivalent) with compensation for sintering shrinkage typically set to 20–25% per the disc manufacturer’s specification.
Disc selection: ST white for posterior high-load cases and bridges. HT white for anterior and moderate-load cases. Disc thickness matched to clinical indication.
Milling: The crown is milled from the pre-sintered white disc using standard open-system CAD/CAM parameters. Pre-sintered zirconia machines quickly and cleanly with minimal tool wear.
Sintering: The milled crown is sintered in a dental furnace at 1480–1550°C following the disc manufacturer’s profile. Sintering densifies the material to its final hardness, strength, and optical properties. Total furnace time is typically 6–8 hours.
Staining and characterization: Ceramic stains compatible with the disc brand are applied to match the prescribed shade. Characterization effects chroma variation, translucency spots, proximal darkening are added at this stage for anterior cases.
Glaze firing: The stained crown is glaze-fired to seal the stain, produce the final surface gloss, and achieve the target shade. One or two glaze firings are standard depending on the shade complexity.
Quality check and delivery: Shade, margin fit, occlusal contacts, and surface finish are verified before packing for delivery to the referring practice.

White Zirconia vs. Pre-Shaded Zirconia: When to Use Each

The choice between white (unshaded) and pre-shaded dental zirconia discs is one of the most practical daily decisions in dental lab materials management. Both formats produce excellent clinical outcomes but in different workflows and for different case types.

Factor	White Zirconia Disc	Pre-Shaded Zirconia Disc
Shade control	Full manual staining — unlimited range	Built-in VITA gradient — standard shades
Best for	Complex cases, characterization, unusual shades	Standard A–D shade daily production
Post-sinter staining	Required for every unit	Rarely needed — glaze only
Multi-unit shade matching	Operator-dependent consistency	Batch-consistent gradient
Bench time per unit	Higher	Significantly lower
Remake risk	Moderate (stain-dependent)	Low
Preferred format for bridges	White 3Y — structural integrity maintained	Pre-shaded for anterior short spans
Cost per disc	Typically lower	Typically higher

Zirconia multilayer discs a third format worth noting combine the pre-shaded gradient concept with a built-in translucency gradient from cervical to incisal. For labs that want to reduce staining time without sacrificing shade naturalism, multilayer pre-shaded discs are the logical step up from white discs for standard anterior cases. White discs remain essential for complex characterization cases and for all posterior bridge work.

White zirconia crowns represent the current standard of care in crown and bridge dentistry for a simple reason: no other single material delivers the same combination of structural reliability, biocompatibility, esthetic flexibility, and production efficiency. For dental laboratories, white dental zirconia discs provide a versatile, predictable foundation for complex esthetic cases where full stain control is required and for structural cases where connector strength is non-negotiable.

The key to white zirconia performance is matching the right disc format to the right clinical indication ST white for strength-critical applications, HT white for esthetic-priority cases — and sourcing from a consistent, documented dental lab material supplier whose batch quality does not vary. When those two conditions are met, white zirconia crowns deliver clinical outcomes that compound across every case in your production schedule.

June 5, 2026

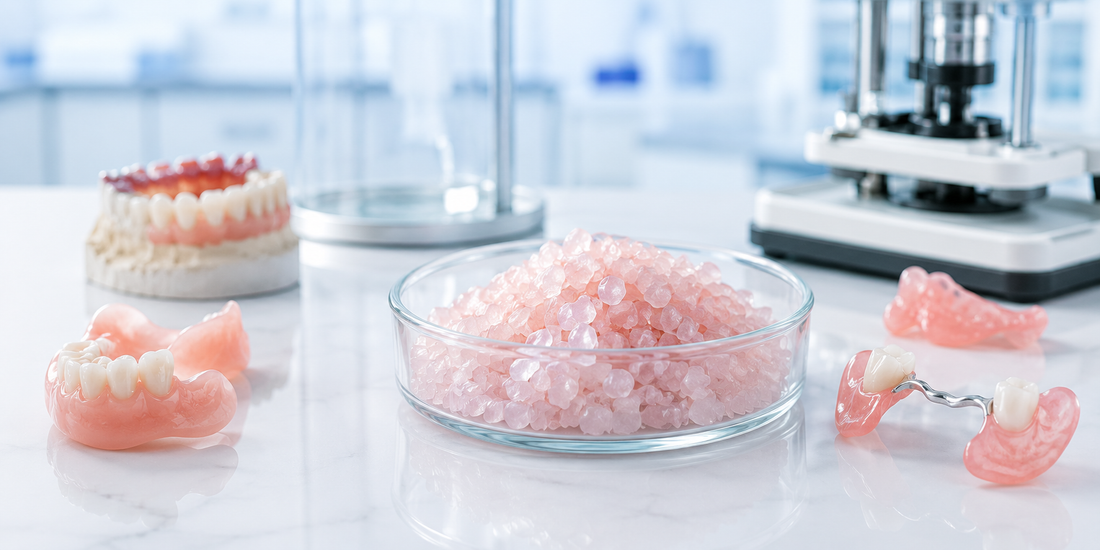

All About Acrylic Resin: Uses, Benefits, and More

Acrylic resin is one of the most widely used materials in dentistry yet most discussions about it either stay surface-level or focus on industrial applications that have little relevance to dental lab workflows. For dental professionals and lab technicians, acrylic resin is not an abstract chemistry concept. It is the material inside every denture base, every temporary crown, every occlusal splint, and every 3D-printed dental appliance in daily production. Understanding what it is, why it performs the way it does, and how to select the right formulation for each application directly affects the clinical quality and efficiency of everything a dental lab produces. This guide covers acrylic resin specifically through the lens of dental laboratory use what differentiates CAD/CAM-grade PMMA from bench-mixed acrylic, where each formulation fits in the clinical workflow, how acrylic resin compares to dental zirconia discs and ceramic alternatives, and how to build a rational acrylic resin inventory for a full-service dental lab. What Is Acrylic Resin? The Chemistry Behind the Material Acrylic resin is the collective name for a family of polymers derived from acrylic acid, methacrylic acid, or their derivatives. In dentistry, the most clinically relevant member of this family is polymethyl methacrylate PMMA formed by polymerizing methyl methacrylate (MMA) monomer into long polymer chains. The properties of the final material depend primarily on how that polymerization is carried out: the temperature, pressure, initiator system, and degree of conversion all affect the mechanical and biological characteristics of the finished product. The distinction that matters most in a dental lab context is the difference between bench-polymerized acrylic and industrially pre-polymerized acrylic. Conventional acryclic resin denta applications bench-mixed denture acrylic, cold-cure temporary material, chairside repair resin are polymerized at atmospheric pressure with chemical or heat initiation. Industrial pre-polymerized PMMA, used in CAD/CAM disc form, is polymerized under 50–200 bar of pressure at elevated temperature. That pressure difference is what fundamentally separates the two material classes in terms of residual monomer content, porosity, mechanical consistency, and clinical performance. Bench-polymerized acrylic typically retains 3–5% residual monomer unreacted MMA that can leach into oral tissue, causing sensitivity responses in susceptible patients. Industrial pre-polymerized PMMA achieves residual monomer below 0.5%, well within ISO 20795-1 biocompatibility thresholds. The higher-pressure polymerization also eliminates most porosity, producing a denser, more homogeneous polymer matrix that mills more cleanly, polishes more easily, and maintains its surface quality longer under intraoral conditions. Types of Acrylic Resin Used in Dental Labs Acrylic resin in dentistry is not a single product it is a material class with distinct formulations for distinct clinical applications. Using the wrong formulation for an application is one of the most avoidable sources of suboptimal clinical outcomes in dental laboratory production. PMMA denture base resin is formulated with gingival-tone pigmentation and optimized for tissue contact. Its primary requirements are biocompatibility (low residual monomer), dimensional stability after milling and polishing, and shade accuracy that matches natural gingival tissue across patient demographics. The key denture base resin is the standard for digital denture workflows pre-polymerized to industrial standards, compatible with all major open-system mills, and documented to meet ISO 20795-1 denture base polymer requirements. Multilayer PMMA for crown and bridge provisionals is formulated with a dentine-to-incisal shade gradient. This gradient architecture replicates the optical zonation of natural tooth anatomy warmer, more saturated chroma at the cervical transitioning to cooler, more translucent appearance at the incisal edge within a single pre-shaded disc. Labs using multilayer PMMA for anterior temporaries eliminate the external staining step on standard A-D shade cases, reducing finishing time significantly per unit. Hard splint acrylic is a high-hardness PMMA formulation used for occlusal splints, night guards, and bruxism appliances. This formulation prioritizes surface hardness and dimensional accuracy over translucency or shade matching. Milled hard splint acrylic delivers superior occlusal accuracy compared to pressure-formed thermoplastics because the restoration is designed from a digital model and milled to a precise occlusal scheme rather than vacuum-formed over an analog cast. Cold-cure and auto-polymerizing acrylic remains in use for chairside repairs, denture relines, and custom impression trays. This bench-mixed format is not a CAD/CAM material it is a manual chairside material that serves repair and adjustment functions that pre-polymerized discs cannot address. Understanding where cold-cure acrylic fits relative to milled PMMA prevents labs from inappropriately substituting one for the other. Dental Resin 3D Printing: Where Acrylic Chemistry Meets Digital Production The fastest-growing segment of acrylic resin use in dental labs is photopolymer resin for 3D printing a category that has expanded dramatically alongside the adoption of desktop and professional dental 3D printers. Dental resin 3d printing products are formulations of acrylic-based monomers and oligomers that cure rapidly under ultraviolet or visible light, layer by layer, to produce dental appliances, models, surgical guides, and provisional restorations. While the chemistry shares the same acrylic monomer foundation as PMMA, 3D printing resins are distinct products with distinct formulation requirements. Photopolymer resins must cure at specific wavelengths (typically 385 nm or 405 nm) within defined layer thickness parameters for the printer's build platform. They must also meet biocompatibility requirements appropriate to their specific application a model resin used only for diagnostic casts has different requirements than a splint resin or a try-in restoration that contacts oral tissue. The key clinical categories of dental 3D printing resin in current lab use include model resins for study casts and implant planning models, surgical guide resins for implant placement guides, splint and night guard resins, try-in restorations for checking shade and fit before final fabrication, orthodontic model resins, and temporary crown and bridge resins for direct printing of provisionals. Each category requires a specifically formulated resin cross-category substitution produces unreliable results and potential biocompatibility issues. The zirconia blocks dental workflow and the 3D printing resin workflow are increasingly complementary rather than competing. Labs run milled zirconia for permanent fixed restorations and 3D-printed resin for the surrounding workflow infrastructure diagnostic models, surgical guides, provisional restorations, and custom trays creating a fully digital production pipeline where both material categories contribute at their respective strength points. Key Benefits of Acrylic Resin in Dental Applications Understanding why acryclic resin dental formulations remain the standard for specific applications despite the expansion of dental zirconia discs, ceramic, and composite alternatives comes down to a set of clinically relevant properties that no other material class combines at acrylic's cost and accessibility. Repairability Acrylic resin is the only dental restoration material that can be chairside-repaired using the same material class as the original restoration. A fractured denture base, a broken provisional crown, a cracked splint all can be repaired with cold-cure acrylic at the chairside without fabricating a new restoration. Zirconia blank and ceramic restorations, by contrast, cannot be repaired when fractured they must be remade. This repairability is clinically significant in removable prosthetics, long-term provisionals, and any application where chairside modification is expected. Adjustability Acrylic resin can be ground, added to, and polished at the chairside with conventional laboratory burs and acrylic instruments. Occlusal adjustments, margin refinements, contact point modifications all are straightforward with acrylic in ways that ceramic and zirconia dental blanks are not. For provisional restorations that serve as the clinical template for the final restoration design, this adjustability is a core functional requirement. Biocompatibility in Tissue-Contact Applications Pre-polymerized, industrial-grade PMMA with residual monomer below ISO 20795-1 thresholds is biocompatible for long-term tissue contact the standard for denture bases that sit against oral mucosa all day. This biocompatibility profile, combined with the material's light weight and tissue-like esthetic character, makes PMMA the correct material for removable prosthetics regardless of the increasing strength of ceramic alternatives. Cost Efficiency Acrylic resin discs and 3D printing resins are significantly lower in per-unit material cost than ceramic or dental zirconia discs. For temporary restorations with defined functional lifespans typically 2–12 weeks for provisionals, 3–12 months for long-term temporaries material cost per unit is a legitimate procurement factor. The lower material cost of acrylic supports competitive pricing on provisional workflows without sacrificing material quality when the correct formulation is sourced from a reliable supplier. CAD/CAM Machinability PMMA is one of the most machinable materials in the CAD/CAM portfolio. Its pre-sintered softness relative to zirconia produces clean chip formation, minimal tool wear, fast milling cycles, and smooth surfaces that require minimal post-processing. A milled PMMA provisional crown takes a fraction of the milling time required for a zirconia blank of equivalent size a workflow efficiency that matters significantly in high-volume lab production. Acrylic Resin vs. Zirconia: A Clear Division of Indications The most important framework for dental labs working with both materials is understanding that acrylic resin and dental zirconia are not competing materials they are complementary materials with clearly separated primary indications. Dental bonding resin and other acrylic-based materials cover the temporary and removable spectrum: provisionals, denture bases, splints, orthodontic appliances, surgical guides, and diagnostic models. Zirconia blocks whether zirconia blank format for chairside mills or disc format for lab mills cover the permanent fixed restoration spectrum: crowns, bridges, implant-supported frameworks, and full-arch reconstructions. The two material categories serve different points in the same treatment workflow, and labs that stock and use both correctly are more efficient and produce better outcomes than labs that attempt to use one material class across all applications. As a zirconia materials distributor usa, ZirconiaGuys stocks the full range of both material categories acrylic resin formulations including Keystone's dental resin range and the complete Upcera and Aidite zirconia dental blanks and disc lineup from US inventory. Labs sourcing both CAD/CAM material categories from a single US supplier reduce ordering overhead, maintain consistent batch documentation, and access technical support across the full workflow from provisional to permanent. How to Select the Right Acrylic Resin Formulation? The most common acrylic resin selection error in dental labs is treating it as a single product category. The following framework maps clinical applications to the correct formulation: For full and partial denture bases — use industrial pre-polymerized PMMA denture base discs in gingival shades. Confirm ISO 20795-1 compliance and documented residual monomer levels below 0.5%. For anterior temporary crowns — use multilayer pre-shaded PMMA discs that match your shade system. Pre-shaded multilayer eliminates staining on standard A-D shade cases and is the most time-efficient format for high-volume anterior provisional production. For posterior temporary crowns — use single-shade PMMA in the appropriate tooth shade. Multilayer gradient adds cost without esthetic benefit in posterior cases where shade precision is secondary to fit and occlusal accuracy. For occlusal splints and night guards — use hard splint PMMA specifically formulated for this application. Standard crown-and-bridge PMMA is not hard enough for long-term splint applications under bruxism loading. For surgical guides — use biocompatible surgical guide resin formulated for the appropriate printer wavelength. Guide resin must meet biocompatibility requirements for tissue contact during surgical procedures. For orthodontic models — use dimensional-accuracy model resin. Model resins are not biocompatible for intraoral use and should not be substituted for splint or provisional resins. Acrylic resin remains one of the most clinically indispensable material categories in dental laboratory production not because it is the strongest or most durable material available, but because it is the right material for a specific and large set of clinical applications where repairability, adjustability, biocompatibility, and cost efficiency are the determining requirements. Understanding the distinction between formulations, matching each to its correct indication, and sourcing from suppliers who document batch quality and meet ISO standards is what separates labs that use acrylic resin effectively from those that compensate for material selection errors through extra labor and remakes.

Learn more

June 4, 2026

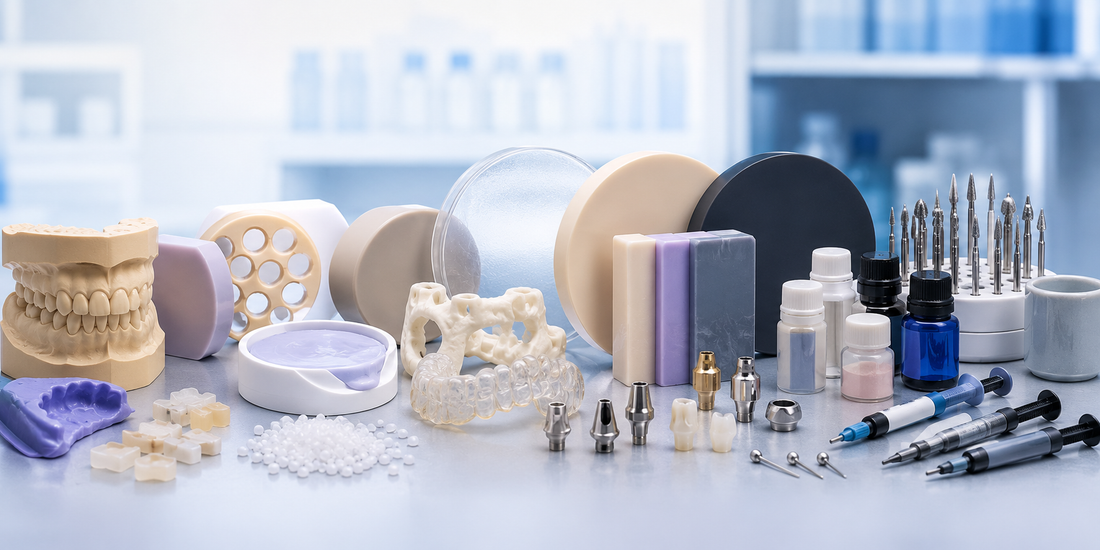

Top 8 Materials Used in Modern Dental Labs

The materials a dental lab stocks define what it can produce, how fast it can produce it, and how consistently it can deliver clinical-quality outcomes. Material selection is not a procurement decision that happens once it is an ongoing operational choice that directly determines case quality, remake rates, bench time per unit, and ultimately, the lab's competitive position in an increasingly demanding market. Modern dental laboratories run on a core set of materials that have been refined over decades of clinical use and CAD/CAM development. Some are ceramic. Some are polymer. Some are metal. Each has a clearly defined role, a specific set of clinical indications, and performance characteristics that make it the right choice for some cases and the wrong choice for others. Understanding all eight gives any dental professional lab technician, prosthodontist, or practice owner a complete picture of what the modern dental lab production floor actually runs on. 1. Zirconia — The Dominant CAD/CAM Ceramic Zirconia is the highest-volume CAD/CAM milling material in the modern dental lab and has been since it displaced PFM as the standard for fixed restorations in the 2010s. No other material combines the flexural strength range (500–1200+ MPa depending on grade), biocompatibility, chemical stability, and esthetic versatility of the current zirconia family. It covers every fixed restoration indication from high-load posterior bridges to translucent anterior veneers with distinct grades engineered for each point on that spectrum. The material is available as dental lab materials in three primary grade classifications. 3Y-TZP (three mole percent yttria) delivers 900–1200+ MPa flexural strength for posterior bridge and high-load applications. 4Y zirconia provides 600–800 MPa with significantly higher translucency the daily production standard for anterior and premolar cases. 5Y zirconia pushes translucency to its maximum at 500–650 MPa reserved for anterior esthetic cases where shade matching to highly translucent natural dentition is the overriding clinical priority. Disc formats: Zirconia blocks dental labs rely on come in two primary formats: flat single-composition (white unshaded or pre-shaded) and multilayer gradient. Flat white zirconia blank discs give full manual shade control through external staining. Pre-shaded multilayer discs embed the VITA-compatible shade gradient internally, eliminating the staining step for standard A–D shade cases and reducing bench time significantly at volume. For labs running the full range of anterior and posterior cases, stocking both formats is the correct strategy. Disc formats and sourcing: The standard diameter for dental lab milling is 98mm, compatible with all major open-system mills. As a trusted zirconia materials distributor usa, ZirconiaGuys stocks aidite zirconia discs for dental labs including the full Aidite multilayer and pre-shaded range, as well as upcera dental zirconia across 3Y, 4Y, and 5Y grades — all from US inventory with no international lead times. Clinical indications: Posterior bridges (3Y), anterior crowns (4Y/5Y multilayer), premolar crowns (4Y), implant-supported restorations (grade by zone), full-mouth rehabilitation frameworks. 2. PMMA — The Provisional and Removable Standard PMMA (polymethyl methacrylate) is the second-highest-volume CAD/CAM milling material in most dental labs and the exclusive material class for temporary restorations, denture bases, and occlusal appliances in digital workflows. It is not a competitor to dental zirconia discs it is the provisional phase that precedes the final zirconia restoration in every full treatment workflow. Pre-polymerized CAD/CAM PMMA discs are manufactured under industrial pressure and temperature conditions that produce a denser, more homogeneous polymer matrix than anything bench-mixed acrylic can deliver. Residual monomer content drops below 0.5% — well within ISO 20795-1 biocompatibility thresholds and dimensional stability improves significantly over conventional flask-and-pack processing. Formulation types: Denture base PMMA carries gingival tissue pigmentation for full and partial denture bases. Multilayer PMMA incorporates a dentine-to-incisal shade gradient for temporary crown and bridge provisionals. Clear PMMA formulations serve occlusal splints, night guards, and clear appliances. Each formulation is optimized for its specific application using denture base PMMA for crown provisionals or clear PMMA for denture bases are both material selection errors that produce poor clinical results. Clinical indications: Temporary crowns and bridges (2–8 weeks), long-term provisionals (3–12 months), CAD/CAM full and partial denture bases, implant-supported temporaries during osseointegration, occlusal splints and night guards. 3. Lithium Disilicate — Precision Esthetics for Single Units Lithium disilicate (most commonly encountered as IPS e.max) occupies a specific, well-defined position in the dental lab materials ecosystem: maximum esthetic integration for single-unit anterior restorations where the clinical priority is optical matching to highly translucent natural dentition. Its flexural strength of approximately 400 MPa is lower than all zirconia grades but higher than feldspathic porcelain, making it appropriate for single-unit crowns and veneers under moderate occlusal load. The material's optical properties are its defining clinical advantage. Lithium disilicate transmits and scatters light in a way that produces exceptional depth of color and natural-looking translucency the standard against which esthetic zirconia grades are benchmarked. For anterior single crowns adjacent to natural teeth with high translucency, lithium disilicate and 5Y zirconia are the two materials worth evaluating, with the final choice depending on preparation design and bonding requirements. Clinical indications: Anterior single crowns, veneers, inlays, onlays. Not appropriate for posterior bridges of 3+ units or high-load posterior single crowns where 3Y or 4Y zirconia is the structurally safer choice. 4. PEEK — High-Performance Polymer for Framework Applications PEEK (polyether ether ketone) has entered dental lab production as a metal-free alternative for removable partial denture frameworks, implant-supported bars, and orthodontic appliances. Its flexural strength of 80–170 MPa, combined with its tooth-like elastic modulus and excellent biocompatibility, makes it uniquely suited for applications where metal frameworks have traditionally been used but metal-free solutions are clinically preferred. PEEK does not corrode, does not generate allergic responses in metal-sensitive patients, and can be milled from pre-fabricated discs in standard CAD/CAM equipment. The material's tooth-like color also eliminates the greyish translucency problem associated with metal frameworks under thin tissue or mucosa. Labs that handle patients with documented metal allergies or who specify metal-free full workflows should stock PEEK alongside their standard dental zirconia and PMMA inventory. Clinical indications: Removable partial denture frameworks, implant-supported bars and telescopic crowns, long-term provisional frameworks, orthodontic retention appliances. 5. Cobalt-Chrome (Co-Cr) Alloy — The Metal Framework Standard Despite the growth of PEEK and milled titanium, cobalt-chrome alloy remains the dominant material for cast and sintered removable partial denture frameworks in labs that handle high volume removable prosthetics. Its mechanical properties flexural strength of 600–900 MPa, high hardness, and excellent fatigue resistance make it the benchmark for metal frameworks that must remain dimensionally stable under repeated loading across years of clinical service. In modern labs, Co-Cr frameworks are produced by one of three methods conventional lost-wax casting, selective laser sintering (SLS) from Co-Cr powder, or milling from pre-fabricated Co-Cr blanks. The SLS and milling routes integrate directly into digital lab workflows, eliminating the manual casting steps that introduce the most variability in conventional framework production. Zirconia dental blanks and Co-Cr discs can both be processed in the same digital design workflow the material and fabrication route diverge only at the manufacturing stage. Clinical indications: Removable partial denture frameworks, metal-ceramic crown and bridge substructures, implant bars and custom abutments requiring high fatigue resistance. 6. Composite Resin Chairside and CAD/CAM Versatility Composite resin serves dual roles in modern dental production: as a chairside direct restorative material placed by the clinician, and as a pre-fabricated CAD/CAM block for indirect lab-milled restorations. The CAD/CAM composite category represented by products like Vita Enamic (polymer-infiltrated ceramic network) and resin nano-ceramic blocks occupies the gap between pure PMMA provisionals and full ceramic crowns. CAD/CAM composite blocks deliver flexural strength in the 150–200 MPa range with an elastic modulus closer to natural dentin than either zirconia or lithium disilicate. This elastic compliance is clinically advantageous in cases where stress absorption at the restoration-tooth interface is a design priority full-coverage crowns on structurally compromised teeth, for example, where the flex of the restoration reduces fracture risk at the margin. Clinical indications: Single-unit crowns and onlays in moderate-load cases, inlays, veneers, implant crowns where elastic modulus matching to surrounding bone and tissue is clinically preferred. 7. 3D Printing Resins — The Fastest-Growing Material Category 3D printing resins have become a significant share of modern dental lab materials inventories in labs that have adopted digital light processing (DLP) or stereolithography (SLA) printing workflows. The category covers a wide range of formulations: model resins for diagnostic casts, surgical guide resins for implant placement guides, splint resins for hard and soft night guards, tray resins for custom impression trays, and most recently permanent crown resins with mechanical properties approaching composite blocks. Keystone dental products represent one of the most complete 3D printing resin ranges available to US labs, covering model, splint, tray, ortho, guide, and denture base applications within a single brand ecosystem. Labs running DLP or SLA printing workflows benefit from consistent brand compatibility matching resin formulations to print profiles validated for the same manufacturer reduces the calibration and troubleshooting overhead that comes with mixing resin brands across applications. The material's throughput advantage over milling is most significant for high-volume model and guide production a DLP printer can produce multiple models simultaneously overnight, with no operator intervention, at a per-unit material cost below any comparable milled alternative. Clinical indications: Diagnostic models, surgical guides, custom impression trays, orthodontic models, hard and soft splints, provisional crowns (permanent resin grades), denture bases (printable PMMA grades). 8. Titanium The Implant and Framework Metal Titanium — primarily Grade 4 commercially pure and Grade 5 (Ti-6Al-4V alloy) — is the implant material and the metal substructure choice for implant-supported restorations where maximum biocompatibility is the clinical requirement. Its combination of low density, high strength-to-weight ratio, corrosion resistance in oral fluids, and exceptional osseointegration performance makes it the universal standard for implant fixtures and a preferred material for implant bars and custom abutments. In dental lab production, titanium is processed as pre-milled blanks for custom abutments and implant bars, or as a received component (the implant fixture itself) onto which lab-fabricated crowns and superstructures are mounted. Milled titanium abutments from pre-fabricated blanks are standard in labs handling implant-level work the precision of CAD/CAM milling produces abutment margins and platform geometries that casting cannot consistently replicate. Clinical indications: Implant fixtures (placed surgically), custom abutments, implant bars for full-arch restorations, metal-ceramic substructures requiring maximum biocompatibility. How to Build a Complete Material Inventory for Your Dental Lab? A well-stocked modern dental lab doesn't require every material on this list it requires the right materials for its case mix. The following framework guides inventory decisions based on production focus: Full-service lab (fixed + removable + implant): 3Y and 4Y/5Y zirconia in flat and multilayer formats, PMMA in denture base and multilayer crown formulations, lithium disilicate for anterior esthetic cases, Co-Cr for removable frameworks, titanium components for implant work, and 3D printing resins for models and guides. Fixed-only CAD/CAM lab: Zirconia as the primary milling material across 3Y, 4Y, and 5Y grades. PMMA multilayer for temporaries. Composite or lithium disilicate for select anterior cases. 3D resin for models and surgical guides. Removable-focused lab: PMMA denture base as the primary material. Co-Cr or PEEK for partial denture frameworks. 3D model resin for diagnostic casts and articulation. Sourcing all zirconia dental blanks, PMMA, and 3D resins from a US-based zirconia materials distributor usa eliminates international lead time uncertainty and ensures consistent batch documentation the foundation of reproducible quality across production runs. The eight materials covered in this guide represent the complete production palette of a modern dental laboratory. Zirconia anchors the fixed restoration workflow. PMMA handles provisionals and removables. Lithium disilicate serves the esthetic anterior niche. PEEK and Co-Cr cover metal-free and traditional framework applications. Composite resin bridges the gap between temporaries and ceramics. 3D printing resins are transforming model, guide, and appliance production. Titanium is the implant and custom abutment standard. Understanding each material at the level of its mechanical properties, clinical indications, and production workflow requirements is what separates labs that consistently hit quality targets from labs that compensate for material selection errors through extra labor and remakes. The right material in the right application is the foundation of every efficient, consistent dental lab.

Learn more

June 3, 2026

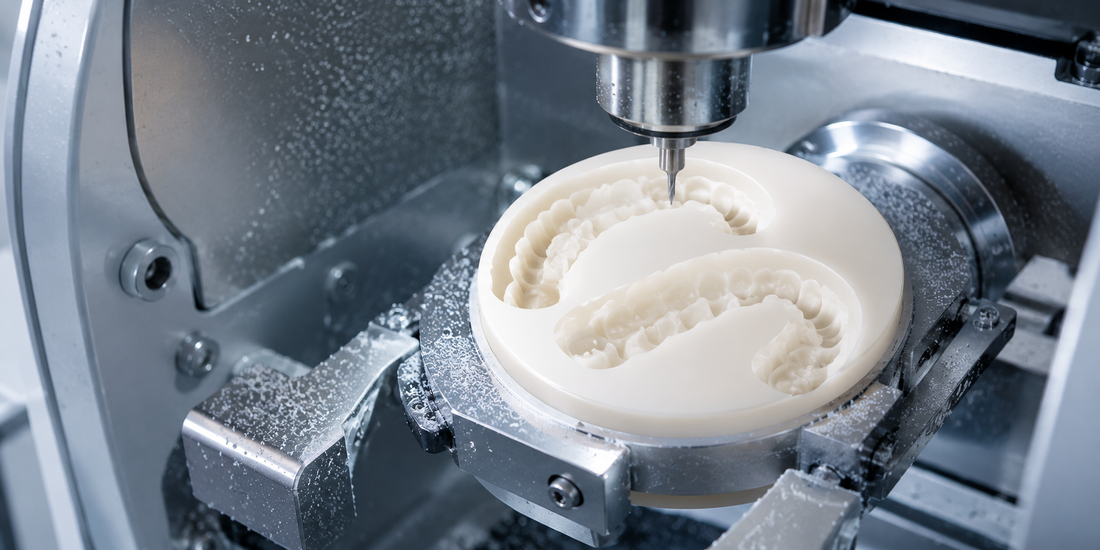

Top Tips for Using Dental PMMA Discs in Milling Machines
